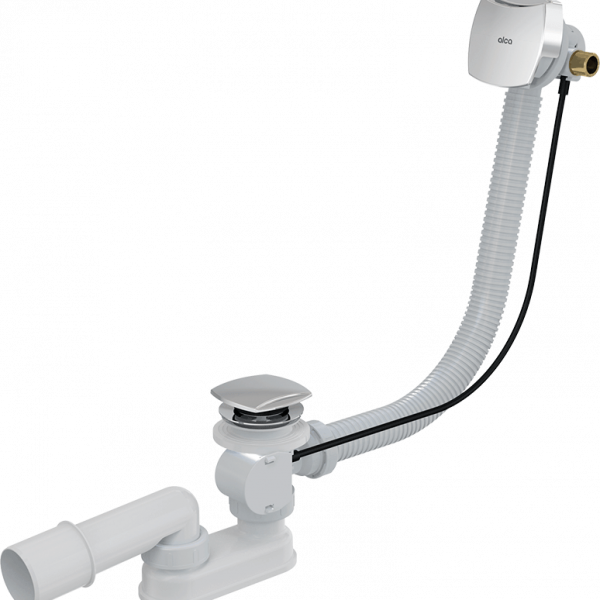

Bath CLICK/CLACK waste and trap, metal A504CKM Alca

Odour trap 50 mm
Flow rate 48,6 l/min
Overflow flow rate 42 l/min
Resistance of odour trap against the pressure 588 Pa
Thermal resistance 95 ˚C

To drain the water from the bath to the waste
For standard size bathtubs
For bathtubs with drain outlet Ø52 mm

Bath waste and overflow system
Wet odour trap with swivel elbow
Closing waste by CLICK/CLACK
Easy clean trap – thanks to completely removable waste outlet
Overflow flexi pipe

Scope of supply

• Waste and trap body with overflow
• Chrome-plated metal grid and overflow cover
• Chrome-plated metal plug
• Chrome-plated brass outlet
• Odour trap of polypropylene, thermally and chemically resistant, longitudinally welded
• Assembly kit
• Profiled seal
• Waste outlet wrench 6/4″
