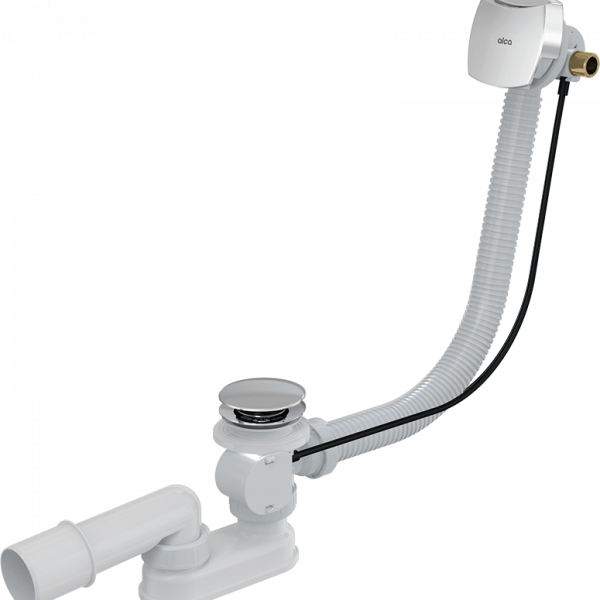

Bath pop-up waste and trap, with overflow filler, A564crm3 chrome Alca

Odour trap 50 mm
Flow rate 48,6 l/min
Overflow flow rate 33,6 l/min
Resistance of odour trap against the pressure 588 Pa
Thermal resistance 95 ˚C

For filling the bath by overflow
To drain the water from the bath to the waste
For standard size bathtubs
For bathtubs with drain outlet Ø52 mm

Bath overflow filler, waste and trap system
Aerator Neoperl – easy access and exchange
Control shaft made of stainless steel
Water does not flow down on the side of the bathtub and does not leave marks
Space-saving design in the bathtub – only control knob visible
Easy installation with three stainless steel screws
Wet odour trap with swivel elbow
Closing waste by pop-up mechanism
Overflow flexi pipe
Side G1/2″ fitting for filling of pre-mixed water

Scope of supply

• Waste and trap body with overflow
• Chrome-plated plastic control knob
• Chrome-plated plastic plug
• Chrome-plated stainless steel outlet grid
• Odour trap of polypropylene, thermally and chemically resistant, longitudinally welded
• Assembly kit
• Profiled seal
