Flush plate for pre-wall installation systems Air Light Alca

Another way to perceptually enrich your bathroom area is the illuminated fl ush plate. When using the AIR fl ush plate in combination with our lighting system ALCA Light you can achieve a nice soft light source in the chosen shade. This casual lighting of your bathroom will  assist during orientation in your house or apartment, especially when you do not want to disturb your loved ones by turning the main light on. The back light is available in four colors, or in a rainbow variant (AIR LIGHT R), which gradually switches to all the colors of the spectrum.

Output voltage 12 V DC

For pre-wall installation systems and concealed WC cisterns

• Flush plate with a subdued light source sufficient to illuminate the WC space or bathroom at night
• Four colours reconfigurable according to the wiring diagram – white, blue, green, red
• Necessary to solve separately the switching of the lighting
• Powered by the main electric supply, the power source must be purchased (12 V DC min 1 A) – recommended AEZ310
• Double-acting mechanical flushing
• Compatible for all pre-wall installation systems and cisterns for building into solid walls Alca
• Maintenance with common detergents used in the household for plumbing fixtures and bathroom accessories
• Resistant to UV rays and external influences
• Precise workmanship with laser technology
• Surface finish: alunox-mat, Anti-fingerprint with surface treatment that eliminates fingerprint smudges
• Material: anodized aluminum

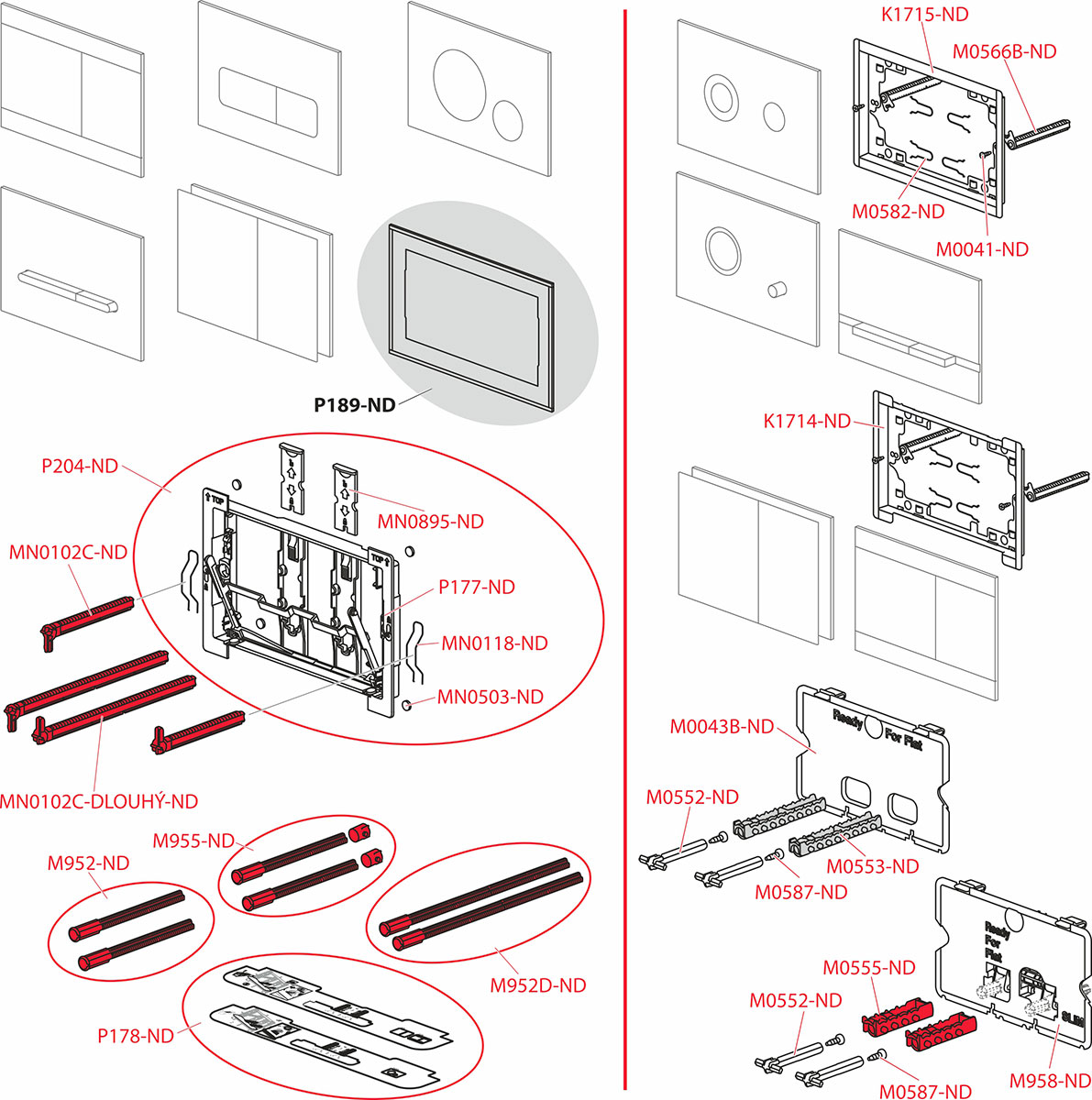

Scope of supply

• Flush plate
• Fixing frame of the flush plate
• Threaded frame clamp 2 pcs
• Adapter kit for the control mechanism of the flush valve
• Integrated white LED back-lit of flush plates
• Connecting cable in a protective tube, length 5 m
• Cable terminals
